• 5G Modem
• Ford App
• Hill Start Assist
• Manual Locking Hubs
• Mono Beam Coil Spring Frt Suspension W/Stab Bar
• Pre-Collision Assist W/Aeb
• Rear View Camera
• Remote Keyless Entry
• Sync4

• 1Touch Up/Down Dr/Pass Win
• Air Cond, Manual Front
• Cloth Sun Visors
• Clth Seats W/8-Way Pwr Drv
• Outside Temp Display
• Particulate Air Filter
• Power Locks And Windows
• Steering:Tilt/Telescope, Cruise & Audio Controls
• Upper Glovebox Storage

• Advancetrac With Rsc
• Airbags - Safety Canopy
• Belt-Minder Chime
• Driver/Passenger Air Bags
• Secure Pkg 1 Yr Included
• Sos Post-Crash Alert Sys
• Tire Pressure Monit Sys

XLT F-350® DRW (623A)

Ford Security Package (1-year included with activation)

Fixed 10,000 lb. GVWR Package

Snowplow/Camper Package

Ford Connectivity Package (1-year included)

• TOUGH BED SPRAY-IN BEDLINER -inc: tailgate-guard black box bed tie-down hooks and black bed attachment bolts
• ENGINE: 6.8L 2V DEVCT NA PFI V8 GAS (STD)
• TRANSMISSION: TORQSHIFT-G 10-SPEED AUTOMATIC -inc: SelectShift and selectable drive modes: normal eco slippery roads tow/haul and off-road (STD)
• 250 AMP ALTERNATOR (GAS)
• UPFITTER SWITCHES (6) -inc: Located in overhead console
• SNOW PLOW/CAMPER PACKAGE -inc: computer selected springs for snowplow application and slide-in camper certification Note 1: Salesperson's source book or Ford RV trailer towing guide should be consulted for specific trailer towing or camper limits and corresponding required equipment axle ratios and model availability Restrictions apply; see supplemental reference or body builders layout book for details Expect firmer ride when vehicle is not equipped w/snowplow and/or camper Note 2: May result in deterioration of ride quality when vehicle is not equipped w/snowplow and/or camper Note 3: Dual battery (86M) recommended w/6.8L or 7.3L gasoline engines; see body builders layout book for details Note 4: Tailgate removal kit w/protective caps can be provided free of charge by your authorized dealer Failure to install the protective caps results in damage to the electrical system not covered by the vehicle warranty See owner's manual for details Rear Stabilizer Bar & Auxiliary Spri
• Locking/Limited Slip Differential
• Four Wheel Drive
• Tow Hitch
• Power Steering
• Dual Rear Wheels
• ABS
• 4-Wheel Disc Brakes
• Brake Assist
• Tires - Front All-Season
• Tires - Rear All-Season
• Conventional Spare Tire
• Tow Hooks
• Heated Mirrors
• Power Mirror(s)
• Integrated Turn Signal Mirrors
• Intermittent Wipers
• Variable Speed Intermittent Wipers
• Daytime Running Lights
• Automatic Headlights
• AM/FM Stereo
• Steering Wheel Audio Controls
• Auxiliary Audio Input
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Cruise Control
• A/C
• Driver Adjustable Lumbar
• Passenger Vanity Mirror
• WiFi Hotspot
• Security System
• Immobilizer
• Stability Control
• Front Side Air Bag
• Tire Pressure Monitor
• Driver Air Bag
• Passenger Air Bag
• Front Head Air Bag
• Rear Head Air Bag
• Child Safety Locks
• Back-Up Camera
• Power Driver Seat
• Seat Memory

• Mileage
• Fuel Economy Est-Combined (MPG): - TBD -
• EPA Fuel Economy Est - City (MPG): - TBD -
• EPA Fuel Economy Est - Hwy (MPG): - TBD -
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 250 & 0
• Maximum Alternator Capacity (amps): 160
• Weight Information
• Base Curb Weight (lbs): 7236
• Gross Axle Wt Rating - Front (lbs): 5990
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9900
• Curb Weight - Front (lbs): 3993
• Curb Weight - Rear (lbs): 3243
• Gross Vehicle Weight Rating Cap (lbs): 14000
• Gross Combined Wt Rating (lbs): 25400
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 17700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1770
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 17400
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 4350
• Maximum Trailering Capacity (lbs): 17700
• Suspension
• Suspension Type - Front: Other
• Suspension Type - Rear: Leaf
• Spring Capacity - Front (lbs): 5990
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9900
• Axle Type - Front: Non-Independent
• Axle Type - Rear: Rigid Axle
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 10400
• Axle Ratio (:1) - Front: 4.30
• Axle Ratio (:1) - Rear: 4.30
• Brakes
• Brake Type: 4-Wheel Disc
• Brake ABS System: 4-Wheel
• Brake ABS System (Second Line): 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 14.3
• Rear Brake Rotor Diam x Thickness (in): 14.3
• Tires
• Front Tire Order Code: TD8
• Rear Tire Order Code: TD8
• Front Tire Size: LT245/75SR17
• Rear Tire Size: LT245/75SR17
• Spare Tire Size: Full-Size
• Front Tire Capacity (lbs): 6390
• Rear Tire Capacity (lbs): 11640
• Revolutions/Mile @ 45 mph - Front: 649
• Revolutions/Mile @ 45 mph - Rear: 649
• Wheels
• Front Wheel Size (in): 17 X 6.5
• Rear Wheel Size (in): 17 X 6.5
• Spare Wheel Size (in): Full-Size
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Re-Circulating Ball
• Turning Diameter - Curb to Curb (ft): 57.8
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 48
• Exterior Dimensions
• Wheelbase (in): 176
• Length, Overall (in): 266.2
• Width, Max w/o mirrors (in): 96
• Height, Overall (in): 81
• Overhang, Front (in): 38.2
• Cab to Axle (in): 56.1
• Ground to Top of Load Floor (in): 36.9
• Ground Clearance, Front (in): 7.8
• Ground Clearance, Rear (in): 7.8
• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 98.1
• Cargo Box Width @ Top, Rear (in): 66.9
• Cargo Box Width @ Floor (in): 66.9
• Cargo Box Width @ Wheelhousings (in): 50.5
• Cargo Box (Area) Height (in): 21.1
• Tailgate Width (in): 60.5
• Cargo Volume (ft³): 78.5

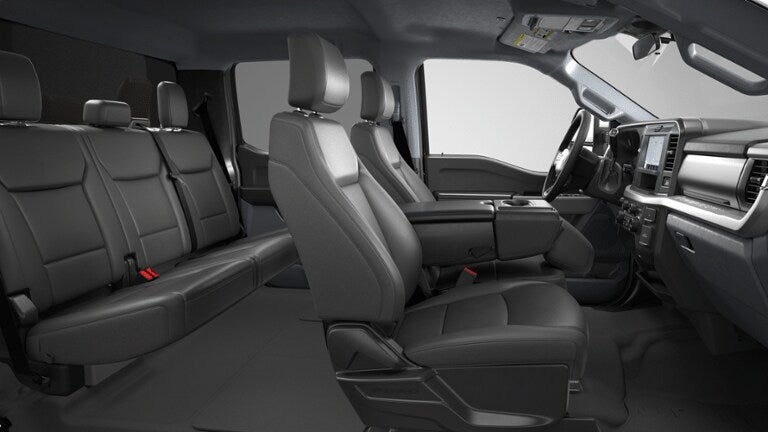

• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 40.8
• Front Leg Room (in): 43.9
• Front Shoulder Room (in): 66.7
• Front Hip Room (in): 62.5
• Second Head Room (in): 40.4
• Second Leg Room (in): 43.6
• Second Shoulder Room (in): 65.9
• Second Hip Room (in): 64.7
• Summary

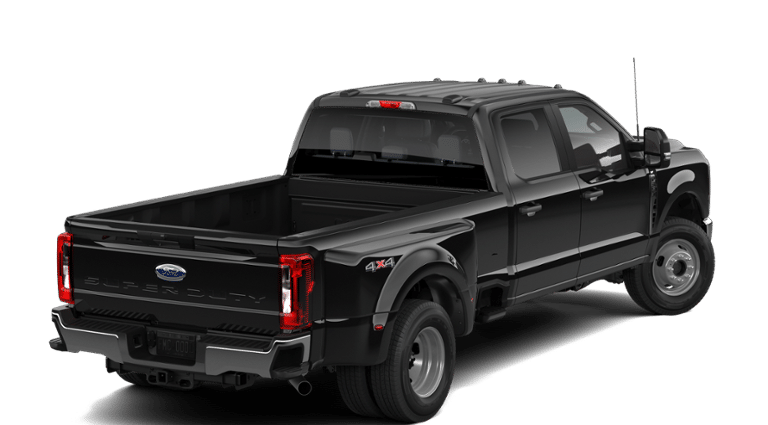

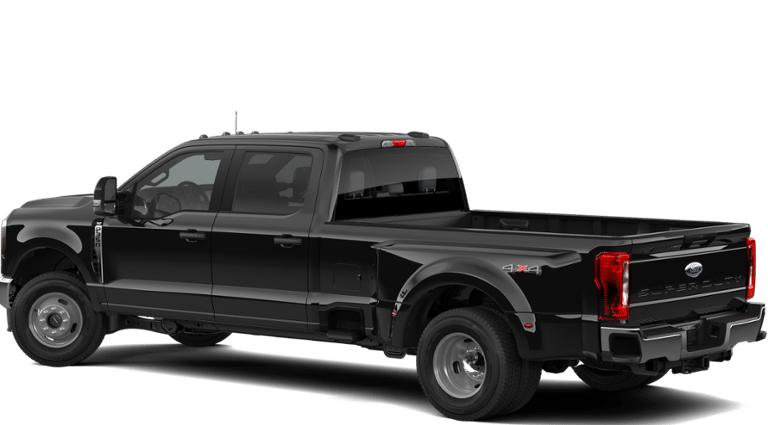

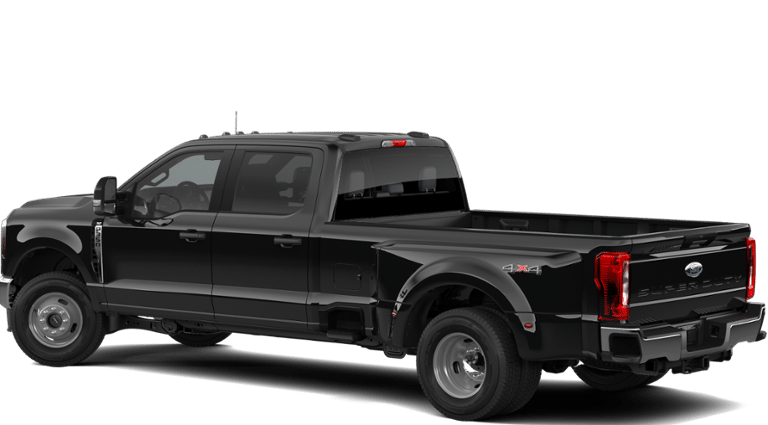

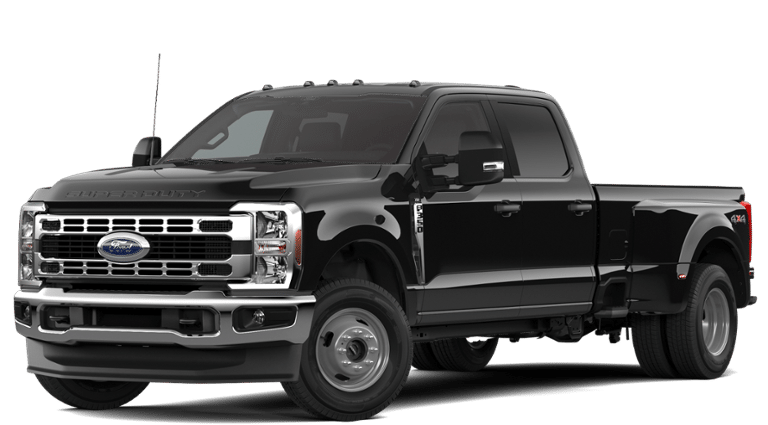

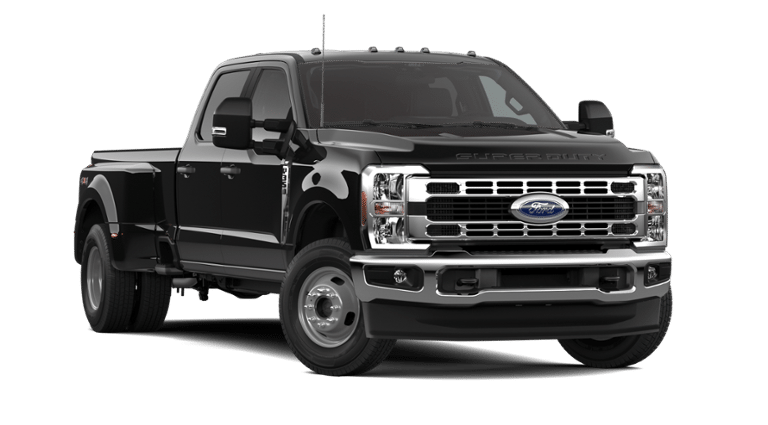

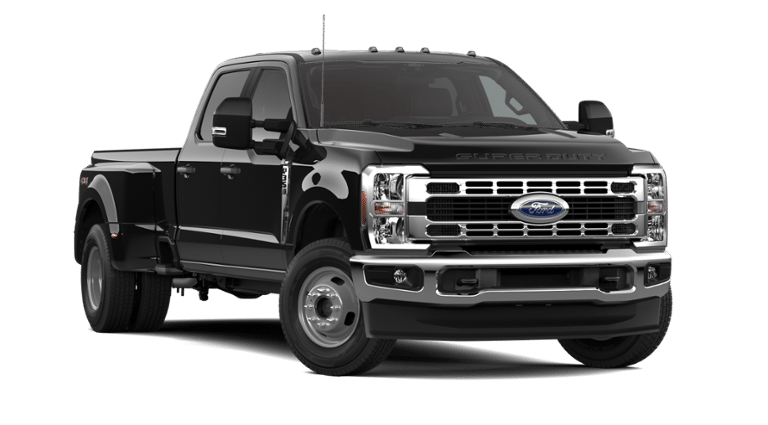

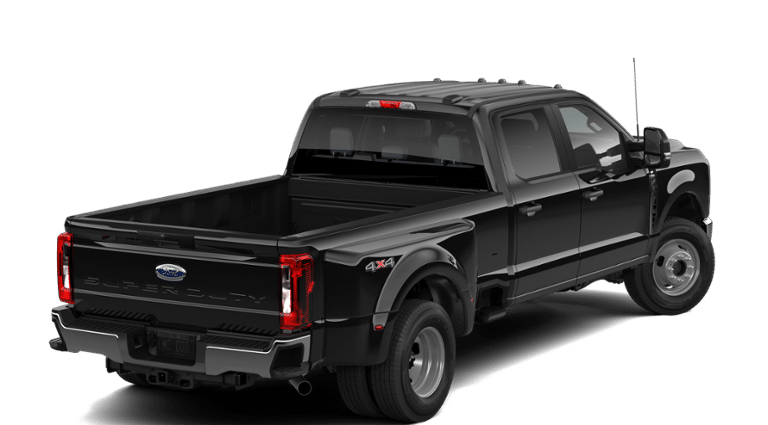

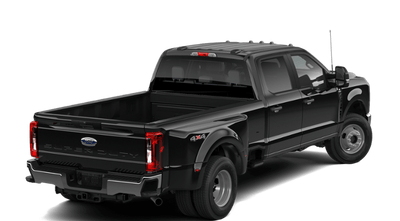

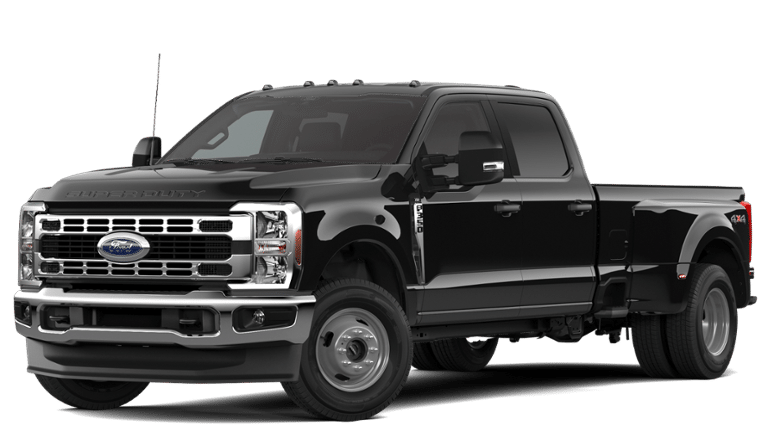

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: SD Crew Cab
• Body Code: T
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
